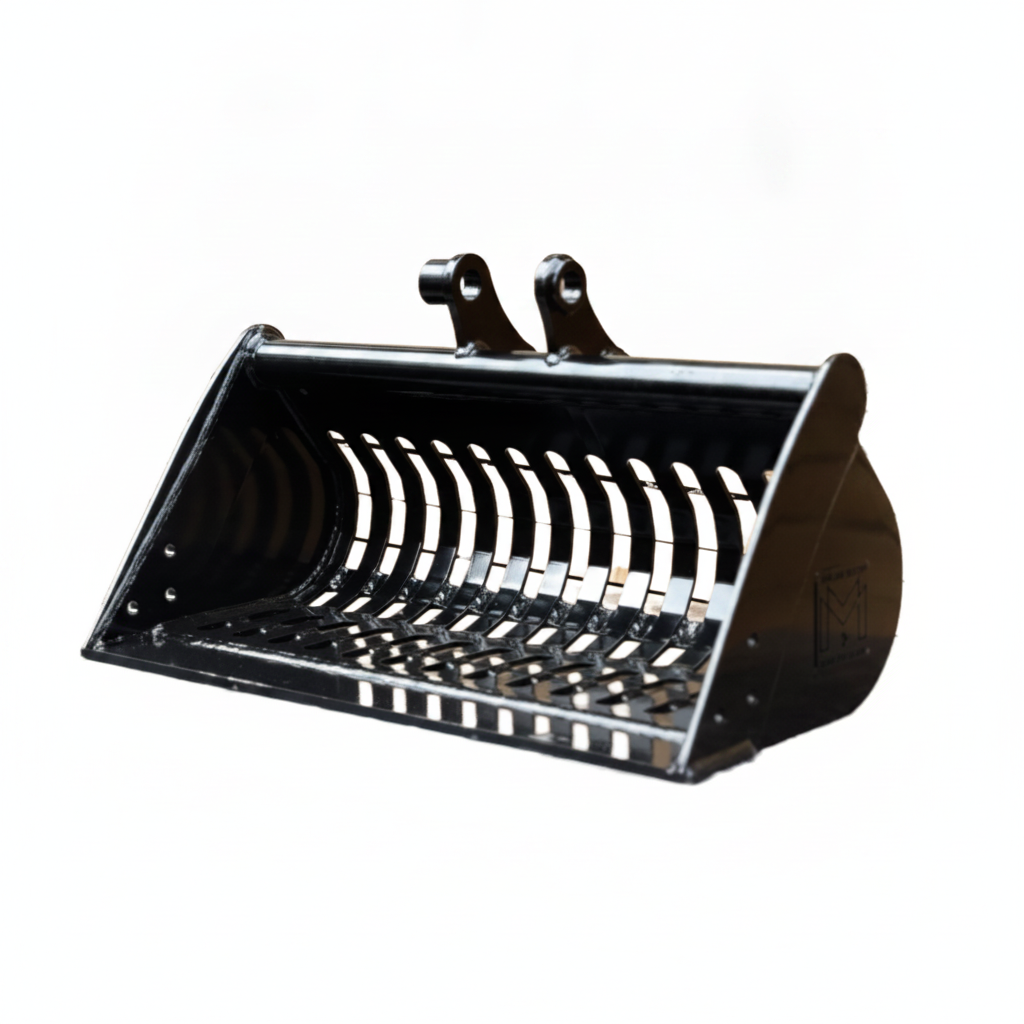

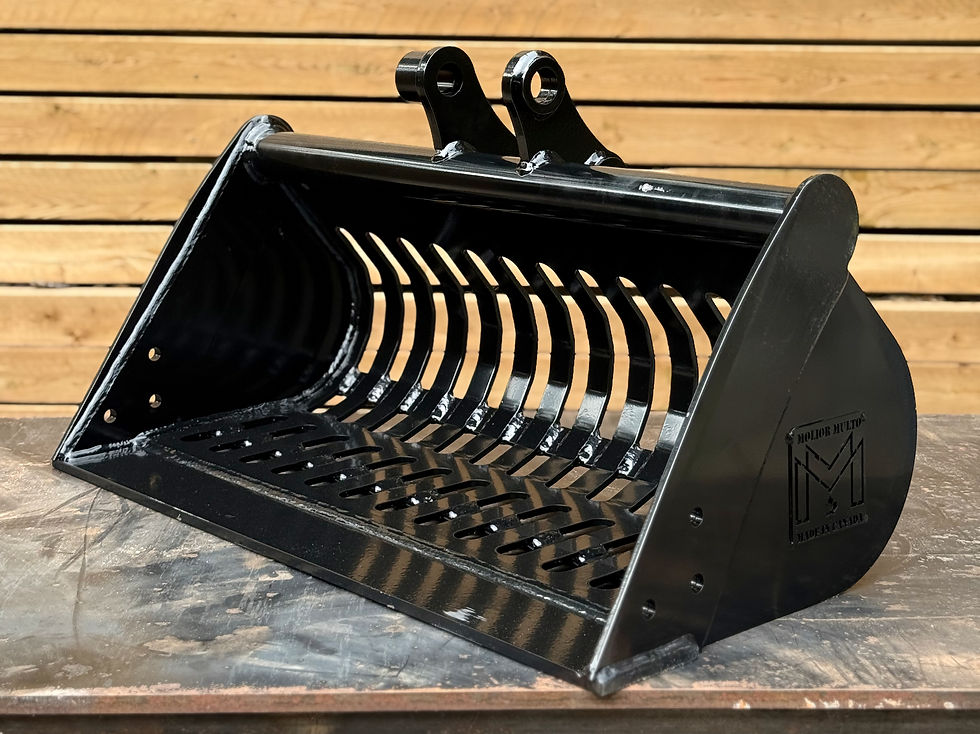

42" Mini Excavator Skeleton Bucket – 1.7T to 3T
Heavy-duty 42-inch skeleton bucket built in Hamilton, Ontario for mini excavators in the 1.7 to 3 ton class. Parallel-bar grate design sifts soil from rock and debris on the fly — ideal for rock removal, root extraction, demolition cleanup, and landscaping work. Reinforced side plates and two horizontal AR400 wear strips welded across the back of the shell deliver added rigidity and abrasion protection for heavier work cycles.
Available in three shell thicknesses — 3/16" (standard), 1/4" (heavy duty), and 3/8" (extra heavy duty). Choose at checkout based on your work cycle and material. Heavier shells handle harder material, more wear cycles, and bigger machines.
Available mounts: Pin-On, Wedge Coupler, or custom-fit to your specified machine. Tell us your make and model at checkout and we'll build to fit.
Quick specs: 42" (1067 mm) cutting width · skeleton (parallel-bar grate for sifting) profile · shell thickness 3/16" (5 mm), 1/4" (6 mm), or 3/8" (10 mm) · smooth high-tensile leading edge, no teeth · Hardox-grade side cutters · reinforced side plates · 2 horizontal AR400 wear strips on back of shell · approx 86 lb (39 kg) at 3/16" · 96 lb (44 kg) at 1/4" · 118 lb (54 kg) at 3/8" · fully welded high-strength structural steel · mini excavator attachment for 1.7 to 3 tons machines · pin-on, wedge coupler, or custom-fit mount, custom-sized per make and model.
Specifications
- Cutting width: 42" (1067 mm)
- Profile: Skeleton (parallel-bar grate for sifting)
- Shell thickness: Choose at checkout — 3/16" (5 mm), 1/4" (6 mm), or 3/8" (10 mm)
- Leading edge: Smooth high-tensile, no teeth
- Wear material: Hardox-grade side cutters
- Side plates: Reinforced for added rigidity under heavy load
- Wear protection: 2 horizontal AR400 wear strips welded across the back of the shell
- Approximate weight: 86 lb (39 kg) at 3/16" · 96 lb (44 kg) at 1/4" · 118 lb (54 kg) at 3/8"
- Mount options: Pin-On, Wedge Coupler, or custom-fit
- Mount specs: Sized to your machine at order — pin diameter, centres, and arm width set per make/model
- Machine class: Mini excavators 1.7 to 3 tons
- Construction: Fully welded high-strength structural steel
- Origin: Made in Hamilton, Ontario
Compatible Machines
Built to fit any 1.7–3 ton mini excavator. Common machines in this class:
- Kubota: U25, KX033, KX040, U35, KX91-3, KX121-3
- Bobcat: E20, E26, E32, E35
- CAT: 301.7 CR, 302 CR, 302.7 CR, 303 CR, 303.5 CR
- Yanmar: ViO25, ViO27, ViO35
- JCB: 8025, 8026, 8030, 8035
- John Deere: 26G, 30G, 35G
- Takeuchi: TB225, TB230, TB235, TB240
- Sany: SY26, SY35
Mount options at checkout: Pin-On · Wedge Coupler · Other (specify)
Machine not listed? We custom-fit to any mount. Send your make, model, and a photo of your stick — quote within 24 hours. Request a custom quote →
What's Included
- 42" skeleton bucket, fully assembled and welded
- Smooth high-tensile leading edge (no teeth)
- Reinforced side plates
- 2 horizontal AR400 wear strips welded across the back of the shell
- 2× self-greasing pins, sized to your machine
- Mount-specific bushings
- 1-year manufacturer warranty
Shipping & Warranty
Shipping. Ships from Hamilton, Ontario. Freight calculated at checkout for Canada and the USA — door-to-door delivery on most orders. Made to order — typical lead time 2–3 weeks from order confirmation.
Warranty. 1-year manufacturer warranty against defects in workmanship and materials. If something goes wrong from how it was built, we'll make it right. Full warranty terms →
FAQ
Will this fit my machine?
This bucket is custom-fitted at the time of order. Select your mount option (Pin-On, Wedge Coupler, or Other) and provide your make and model at checkout, or send us a photo of your stick and pins for confirmation.
What's a skeleton bucket good for?
Skeleton buckets are designed to separate soil from larger material — rock, roots, demolition debris, mulch, gravel. The parallel-bar grate lets fines fall through while keeping the rest in the bucket. Common uses: site cleanup, rock picking, root removal, landscaping prep.
What are the AR400 wear strips for?
Two horizontal AR400 (abrasion-resistant) steel strips are welded across the back of the shell where the bucket sees the most material drag and impact. They take the wear so the structural shell doesn't, dramatically extending the life of the bucket in rocky or abrasive conditions.
Can I add a back plate or solid floor?
Yes — add a note at checkout or contact us before ordering and we'll configure to your spec.
How does the warranty work?
One year from delivery. If you have a manufacturing defect, send us photos and we'll arrange repair, replacement, or refund.
Do you offer rush fabrication?
Sometimes — call 416-220-8550 to discuss your timeline.
What's the difference between trenching, grading, ditching, skeleton, rake, and ripper?
Trenching buckets are narrow with high break-out force for clean wall finish in utility and footing work. Grading buckets are wide with a straight cutting edge for finish work, backfilling, and site cleanup. Ditching buckets are wider and shallower for ditch shaping, drainage channels, and culvert maintenance. Skeleton buckets sift material on the fly — ideal for rock and root separation. Rakes gather rocks, roots, and debris into piles. Rippers are single-shank tools for breaking hard ground and ripping roots — where a bucket can't dig.
